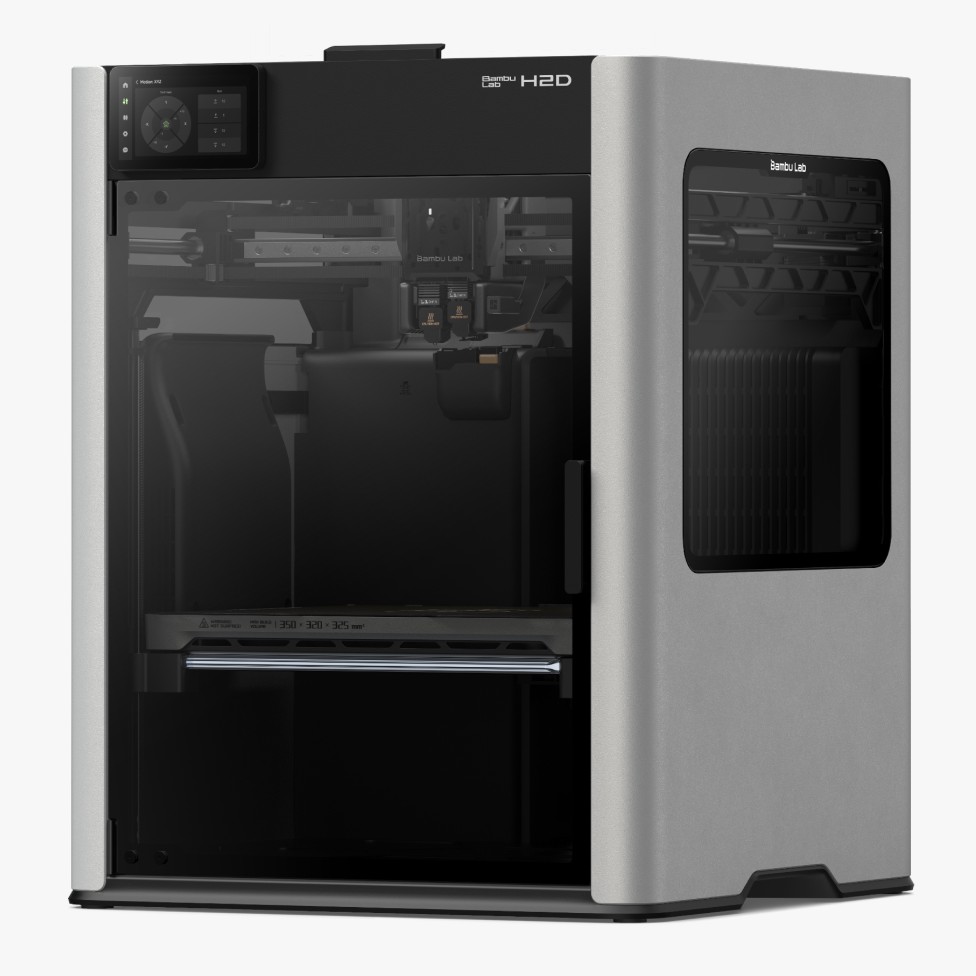

H2D Specs
| Item | Specification | |
| Printing Technology | Fused Deposition Modeling | |
| Body | Build Volume (W*D*H) | Single Nozzle Printing: 325*320*325 mm³ Dual Nozzle Printing: 300*320*325 mm³ Total Volume for Two Nozzles: 350*320*325 mm³ |
| Chassis & Shell | Aluminum, Steel, Plastic and Glass | |
| Laser Safety Windows | Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit | |
| Air Assist Pump | Equipped on Laser Edition, normal H2D can upgrade through Laser Upgrade Kit | |
| Physical Dimensions | Physical Dimensions | 492*514*626 mm³ |
| Net Weight | 31 kg (Gross weight：H2D: 38.5 kg; H2D AMS Combo: 42.3 kg; H2D Laser Full Combo: 46.2 kg) | |
| Toolhead | Hotend | All Metal |
| Extruder Gear | Hardened Steel | |
| Nozzle | Hardened Steel | |
| Max Nozzle Temperature | 350 °C | |
| Included Nozzle Diameter | 0.4 mm | |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm | |
| Filament Diameter | 1.75 mm | |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor | |
| Heatbed | Supported Build Plate Type | Textured PEI plate, Smooth PEI Plate |
| Max Heatbed Temperature | 120 ℃ | |
| Speed | Max Speed of Toolhead | 1000 mm/s |
| Max Acceleration of Toolhead | 20,000 mm/s² | |
| Max Flow for Hotend (Standard Flow Hotend) | 40 mm³/s(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature) | |
| Max Flow for Hotend (Optional High Flow Hotend) | 65 mm³/s(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 °C printing temperature) | |
| Chamber Temperatur Control | Active Chamber Heating | Supported |
| Max Temperature | 65 °C | |
| Air Purification | Pre-filter Grade | G3 |
| HEPA Filter Grade | H12 | |
| Activated Carbon Filter Type | Granulated Coconut Shell | |
| Cooling | Part Cooling Fan | Closed Loop Control |
| Auxiliary Part Cooling Fan | Closed Loop Control | |
| Chamber Heat Circulation Fan | Closed Loop Control | |
| Cooling Fan for Hotend | Closed Loop Control | |
| Main Control Board Fan | Closed Loop Control | |
| Chamber Exhaust Fan | Closed Loop Control | |
| Supported Filament Type | PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA CF/GF, PPS, PPS CF/GF | Supported |
| Sensor | Live View Camera | Built-in; 1920*1080 |
| Nozzle Camera | Built-in; 1920*1080 | |
| BirdsEye Camera | Built-in; 3264*2448（Equipped with Laser Edition） | |
| Toolhead Camera | Built-in; 1920*1080 | |
| Door Sensor | Supported | |
| Filament Run Out Sensor | Supported | |
| Filament Tangle Sensor | Supported | |
| Filament Odometry | Supported with AMS | |
| Power Loss Recovery | Supported | |
| Electrical Requirements | Voltage | 100-120 VAC / 200-240 VAC, 50/60 Hz |
| Max Power* | 2200 W@220 V / 1320 W@110 V | |
| Please purchase the version corresponding to your region’s voltage. | ||
| Working Temperature | 10 °C-30 °C | |
| Electronics | Touchscreen | 5-inch 720*1280 Touchscreen |
| Storage | Built-in 8 GB EMMC and USB Port | |
| Control Interface | Touchscreen, mobile App, PC App | |
| Neural Processing Unit | 2 TOPS | |
| Software | Slicer & Software | Bambu Studio, Bambu Suite, Bambu Handy Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported. |
| Supported Operating System | MacOS, Windows | |
| Wi-Fi | Operating Frequency | 2412-2472 MHz, 5150-5850 MHz (FCC/CE) 2400-2483.5 MHz, 5150-5850 MHz (SRRC) |
| Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE) | |
| Wi-Fi Protocol | IEEE 802.11 a/b/g/n | |
| 10W & 40W Laser Module | Laser Type | Semiconductor Laser |
| Laser Wavelength | Engraving Laser: 455 nm ± 5 nm Blue Light Height Measuring Laser: 850 nm ± 5 nm Infrared Light | |
| Laser Power | 10 W ± 1 W; 40 W ± 2 W | |
| Laser Spot Dimension | 10W: 0.03 mm * 0.14 mm; 40W: 0.14 mm * 0.2 mm | |
| Working Temperature | 0 °C–35 °C | |
| Max Engraving Speed | 10W: 400 mm/s; 40W: 1000 mm/s | |
| Max Cutting Thickness | 10W: 5 mm; 40W: 15mm (Basswood Plywood) | |
| Laser Safety Class for Laser Module | Class 4 | |
| Overall Laser Safety Class* | Class 1 | |
| Engraving Area | 10W: 310 mm * 270 mm; 40W: 310 mm * 250 mm | |
| XY Positioning Accuracy | < 0.3 mm | |
| Z Height Measuring Method | Micro Lidar | |
| Z Height Measuring Accuracy | ± 0.1 mm | |
| Flame Detection | Supported | |
| Temperature Detection | Supported | |
| Door Sensor | Supported | |
| Laser Module Installation Detection | Supported | |
| Safety Key | Included | |
| Ventilation Pipe Adapter Outer Diameter | 100 mm | |
| Supported Material Type | Wood, rubber, metal sheet, lether, dark acrylic, stone, and more | |
| Cutting Module | Cutting Area | 300*285 mm² |
| Drawing Area | 300*255 mm² | |
| Supported Pen Diameter | 10.5 mm-12.5 mm | |
| Cutting Mat Type | LightGrip and StrongGrip Cutting Mats | |
| Blade Type | 45°*0.35 mm | |
| Blade Pressure Range | 50 gf-600 gf | |
| Max Cutting Thickness | 0.5 mm | |
| Blade and Pen Recognition | Supported | |
| Cutting Mat Type Detection | Supported | |
| Supported Image Type | Bitmap and Vector Images | |
| Supported Material Type | Paper, vinyl, leather, and more | |
